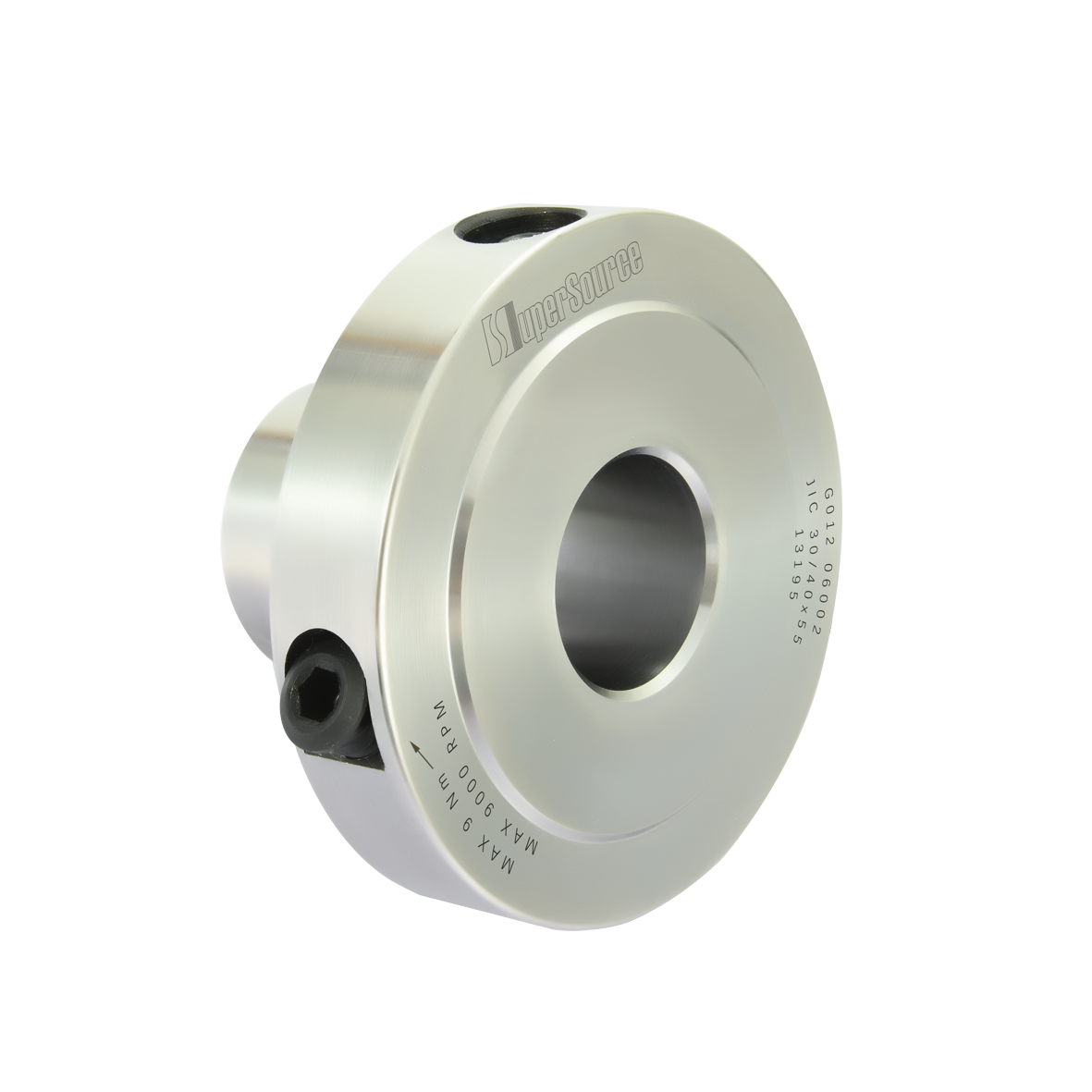

Type JIC Hydro-lock Sleeve
Click to enlarge
Type JIC Hydro-lock Sleeve
Product Description
Type JIC hydro-lock sleeve is designed for interchangeable tool assembly, which is commonly used for knife grinding and testing.
Max. Operation Speed: 9000 rpm.
Highlight Features
- Special manufacturing processes ensure extremely high geometric precision at the two end faces, significantly improve the grinding quality and test accuracy of knives;
- Easy and quick pressurization with an Allen T wrench;
- Advanced surface nickel-plating prevents our products from corrosion and rust.
Download: SuperSource Type JIC Hydro-lock Sleeve
Category: Hydro-lock Sleeves
| SKU | Product | D | D1 | D2 | L | L1 | N |
|---|---|---|---|---|---|---|---|
| G012 06001 | JIC 40/60 x 55 | 40 | 60 | 120 | 55 | 35 | 6 |
| G012 06002 | JIC 30/40 x 55 | 30 | 40 | 90 | 55 | 35 | 6 |
| G012 06003 | JIC 30/60 x 55 | 30 | 60 | 90 | 55 | 35 | 6 |
| G012 06004 | JIC 60/80 x 50 | 60 | 80 | 90 | 50 | 30 | 6 |
| G012 06005 | JIC 40/80 x 50 | 40 | 80 | 140 | 50 | 30 | 6 |
| G012 06006 | JIC 40/120 x 50 | 40 | 120 | 190 | 50 | 30 | 6 |
| Please note that all the dimensions in the above table are in metric (mm). | |||||||
